The latest releases of SCCM Current Branch(1702 and 1706) bring a new round of requirements. With SCCM 1702, it’s required to run site servers on a Windows Server higher than 2008 R2. Now with SCCM 1706, some of the new features like Manage Microsoft Surface driver updates, requires that all Software Update Point (WSUS) runs on Windows Server 2016. We can assume that we’ll see more of those new features requiring Windows Server 2016 in the future.

In this post, we will detail how to do an in-place OS upgrade from Windows Server 2012 R2 to Windows Server 2016, on an SCCM primary site with SQL installed locally.


  • SCCM Current branch minimum level 1602
    • See our latest post to upgrade SCCM to 1706 here
  • Minimum versions for SQL server, if installed on the site server :
    • 2012 SP2 and up
    • 2014 SP1 and up
    • 2016 RTM and up
    • See KB here for more details

Tasks before In-place OS upgrade

  • Install all the latest Windows updates, as the Upgrade setup will ask for it.

In-place OS upgrade SCCM server

  • Uninstall System Center Endpoint Protection client, if used.

In-place OS upgrade SCCM server

This is needed as Windows Server 2016 as Windows Defender built-in. As per Microsoft documentation, not removing SCEP client, could prevent the upgrade. Also, consider validating your Antivirus solution recommended approach with in-place OS Upgrade
With previous in-place OS upgrade from Windows Server 2008 R2 to Windows Server 2012/R2, it was required to removed WSUS. This was due to a WSUS version change. This is no longer required, as Windows Server 2012/R2 and Windows Server 2016 uses the same WSUS version.


In-place OS upgrade SCCM server

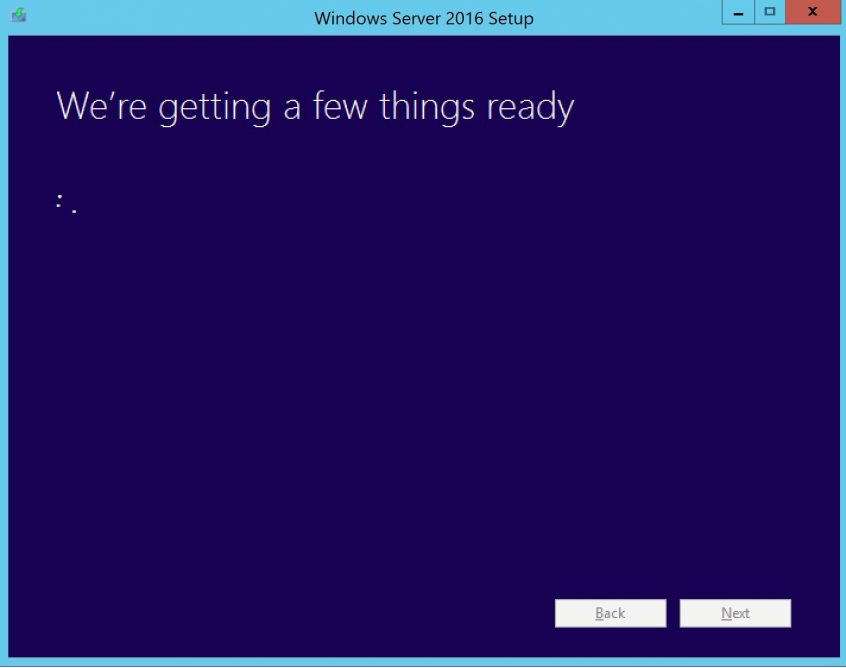

  • Insert/Mount the Windows Server 2016 media and Start Setup.exe

In-place OS upgrade SCCM server

  • Select Download and install updates and click Next

In-place OS upgrade SCCM server

  • If there are still update, the setup will let you know

In-place OS upgrade SCCM server

  • Enter Product key, click Next

In-place OS upgrade SCCM server

  • Select Windows Server 2016 (Desktop Experience)

In-place OS upgrade SCCM server

[su_box title=”Note” style=”glass” title_color=”#F0F0F0″]Windows Server Core is not supported for Site server. [/su_box]
  • Accept license terms

In-place OS upgrade SCCM server

  • Select Keep personal files and apps, click Next

In-place OS upgrade SCCM server

  • Gettings updates if still needed

In-place OS upgrade SCCM server

  • Validating before upgrade

In-place OS upgrade SCCM server

  • Warning about Windows Server upgrades. SCCM support it, so click Confirm

In-place OS upgrade SCCM server

  • Validating available space on C:\ drive

In-place OS upgrade SCCM server

  • If there is not enough space, you will receive the following screen. Otherwise, it will show that it is ready, click Refresh

In-place OS upgrade SCCM server

  • Installation will begin

In-place OS upgrade SCCM server

  • The installation will proceed and automatically reboot.

In-place OS upgrade SCCM server

  • Once completed, the logon screen will display

In-place OS upgrade SCCM server

Post Upgrade tasks

In-place OS upgrade will require post upgrade tasks to be completed. Some services have been set to disable or haven’t started after the initial boot under the new OS.

  • IIS services are stopped and disabled
    • Many SCCM component require IIS, so this needs to be fixed

In-place OS upgrade SCCM server

  • Open the Services management console
  • Browse to World Wide Web Publishing  service, and set it back to Automatic

In-place OS upgrade SCCM server

  • Browse to Windows Process Activation service, and set it back to Automatic

In-place OS upgrade SCCM server

  • SCCM Services are also not running.
    • Rebooting the server after validating they are set to automatic, will correct this situation.

In-place OS upgrade SCCM server

  • Reboot the server
  • If the site server is hosting the WSUS/SUP role, action must be taken, as the WSUS Configuration Manager will return error about the availability of WSUS on the local server

In-place OS upgrade SCCM server

  • To fix this, Launch the Post-Installation tasks of WSUS from the Server Manager
    • Be sure to have fixed the services of IIS/SCCM and rebooted the server prior to run the Post-installation tasks, as WSUS rely on IIS also.

In-place OS upgrade SCCM server

  • One last reboot is needed so WSUS/SUP are correctly configured.
  • Look at the Monitoring/System Status/Component Status if any error remains. Fix them before going any further with SCCM functionally.


In-place OS upgrade SCCM server

Do not forget about Antivirus action after the upgrade. Most probably an update or re-installation will be needed.

If you use System Center Endpoint Protection, it should be reinstalled to manage Windows Defender, just like Windows 10

Click here for more details about In-place OS Upgrade for SCCM servers

Share this Post

That’s it, you’ve successfully upgraded your server to Windows Server 2016.
